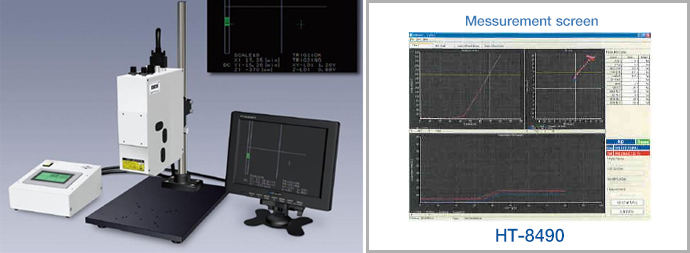

Displacement Tilt Sensor consists of an optical sensor and Signal Processing unit
An epoch-making optical sensor, which simultaneously measures tilt and displacement with a single beam
Simultaneous measurement of tilt(Θx , Θy) and displacement(Z)
Suitable for checking mobilephone camera modules such VCM, Piezo and stepping motors
Optical Sensor
HT-8490
Signal Processing Unit
IP-8680-001
IP-8680A ※1
Working distance
80㎜
Tilt X, Y
Measure Range
±90min
Resolution (Digital)
0.03min ※2
Resolution(Analog)
0.15min ※3
-
Displacement Z
Measure Range
±4㎜
Resolution (Digital)
0.5㎛ ※2
Digital data output cycle
100 data/sec
50data/sec
Analog data output cycle
10,000 data/sec
-
Analog output of Displacement Tilt Sensor
±5V(ND시 : +10V)
-
※1 Current drive can be built into Sinal Processing Unit as an option
※2 The value, which the KATSURA OPTO referance object is measured with the moving average of 1 times at a reference distance
