| 홈>제품정보>초고정도 3차원 측정기 |
 |
|

| Molel |

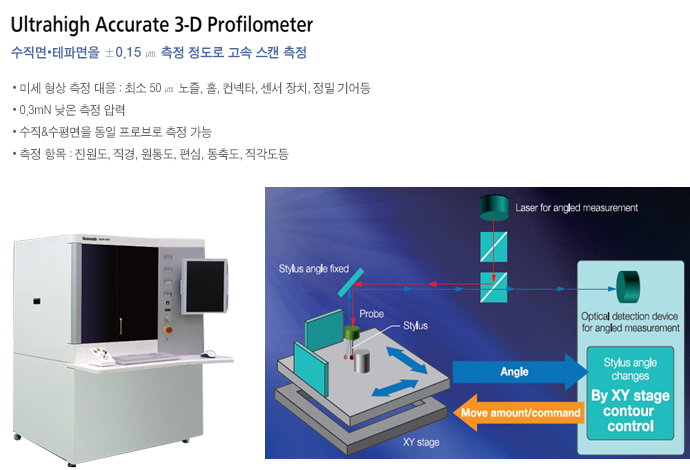

UA3P-L400S |

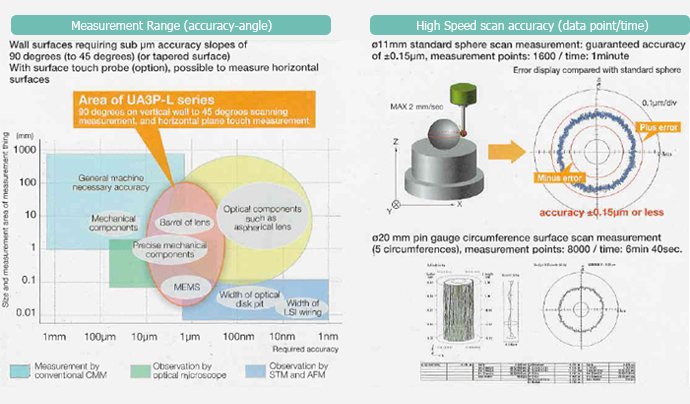

| Measurement range |
100(X) Ⅹ 100(Y) Ⅹ 50(H) mm |
| Maximum sample mass |
10kg |
| Scale |
He-Ne Frequency stabilized Laser |
| Measurement angle |
45 to 90 degrees |
| Probe measurement force |
0.3 to 1.0mN(30 to 100mgf) |
Probe measurement accuracy
(stylus : standard ruby) |
±0.15㎛(when measuring 90 degrees slope) |
| Probe manipulation |
Keyboard, Mouse or joystick operation available |
| Measurement speed |
0.01 to 5 ㎜/s |
| Software |
NC auto-generation for side measurement, Auto-alignment(includes probe radius offset), Data editing, Auto-centering, Monitoring while measuring, 3D color graph, Measurement origin operation, Point array data output, Cylindricality, Sphericity, Flatess, Cylindrical shape evaluatio function, etc |
| Usage environment |
20 to 25℃(maintained within ±1℃) in a controlled room
Humidity(20 to 60%), Mimimal dust, Clean area, Free of vibration & shock level area, Air should not directly flow against the machine
Cleanroom level : Class 15,000 or lower(dust particle size)
Vibration acceleration level below 5.0cm/s²(=5.0 gal)
|
|
| |
|
 |
|
