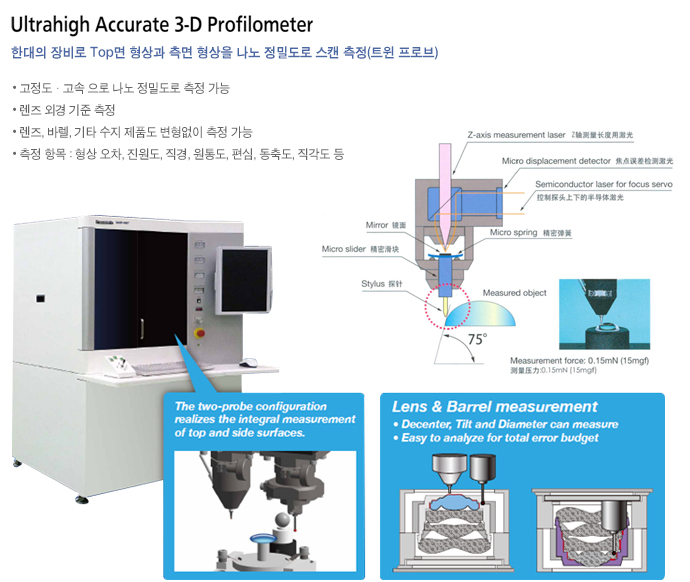

Molel UA3P-400T
ÃøÁ¤ ¹üÀ§ Top surface measurement 100(X) ¥¹ 100(Y) ¥¹ 50(Z) mm
Side surface measurement 100 ¥¹ 100 ¥¹ 50 mm
Top and Side surface measurement ¨ª50(XY) ¥¹ 50 (Z)mm
ÃÖ´ë »ùÇà ¹«°Ô 10kg
½ºÄÉÀÏ He-Ne Frequency stabilized Laser(He-NeÁ֯ļö ¾ÈÁ¤ ·¹ÀÌÀú)
ÃÖ´ë ÃøÁ¤ ¾Ð·Â Top surface measurement : 0.15 to 0.3mN(15 to 30mgf)
Side surface measurement : within 1.0mN(with 100mgf)
ÃÖ´ë ÃøÁ¤ °¢µµ Top surface measurement 75¡Æ
Side surface measurement :
When horizontal scanning 45 to 90¡Æ
When vertical scanning 80 to 90¡Æ
Angle is defined from horizontal surface.
ÇÁ·Îºê ÃøÁ¤ Á¤µµ Top surface measurement(Sample : Standard sphere)
Z measurement range within 35mm
Up to 30¡Æ     ¡¾0.05 §­
Up to 45¡Æ     ¡¾0.08 §­
Up to 60¡Æ     ¡¾0.15 §­
Up to 70¡Æ     ¡¾0.15 §­(downward)

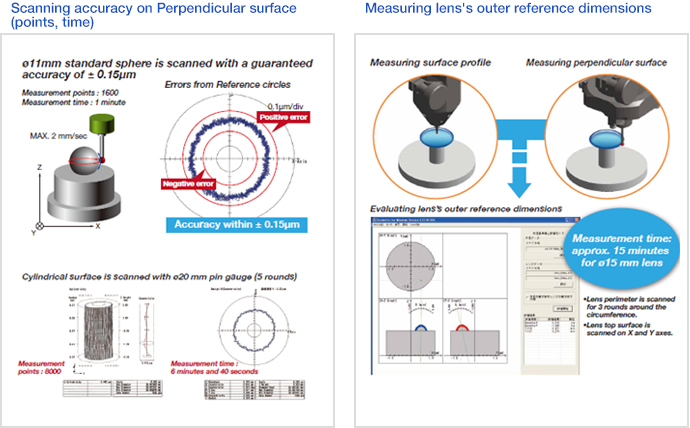

Side surface measurement (Sample : Standard sphere)
Equator roundness : ¡¾0.15§­
Combination of Top and Side surfaces measurement
Standard sphere measurement : within ¡¾0.5 §­
ÃøÁ¤ ¼Óµµ Top surface measurement : 0.01 to 10 §®/s
Side surface measurement : 0.01 to 5 §®/s
¼ÒÇÁÆ®¿þ¾î Top surface measurement(UA3P) function
Measurement NC program automatic creation, Auto-alignment(Includes probe radius offset), Data editing, Auto-centering, Monitoring while measuring, 3D color graph, Measurement origin operation, Point array data output
Side surface measurement(UA3P-L400S) function
Profile evaluation function for roundness, sphericity flatness and cylinder
Top and Side surfaces measurement function
Evaluation function for measurement based on lens outer shape
