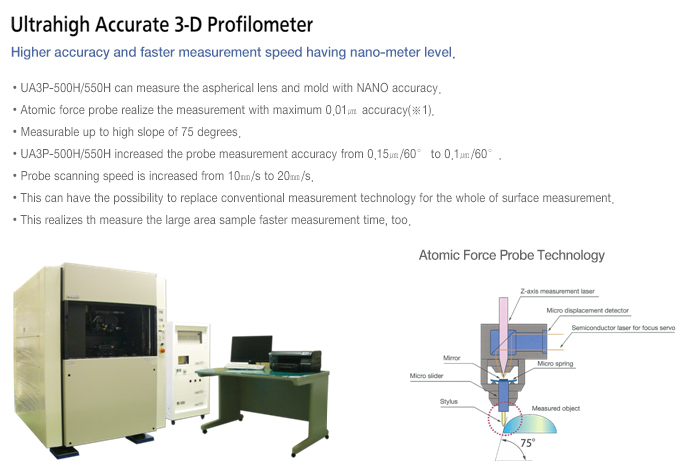

| Home>Product>Ultrahigh Accurate 3-D Profilometer |
 |
|
| Molel |
UA3P-500H |
UA3P-550H |
Measurement range
(X, Y, Z-axis) |
200 Ⅹ 200 Ⅹ 45 mm |
1) 200 Ⅹ 200 Ⅹ 45 mm
2) 260 Ⅹ 90 Ⅹ 45 mm
|
| Main body outer dimensions |
W1,200 Ⅹ D1,346 Ⅹ H1,550 mm |
| Scale |
He-Ne Frequency stabilized Laser |
| Probe |
Atomic force probe
Ruby Tip curvature radius 0.5 ㎜
Diamond : Tip curvature radius 2 ㎛
|
| Maximum measurable angel |
75° |
| Probe measurement accuracy |
Ruby stylus
Surface inclined angle
Up to 30° 0.01 ~ 0.05 ㎛
Up to 45° ~ 0.08 ㎛
Up to 60° ~ 0.1 ㎛
Up to 70° ~ 0.15 ㎛(downward)
|
Standard diamond stylus
Surface inclined angle
Up to 30° up to 0.1 ㎛ : Actual value(Not guaranteed value)
|
| Measurement speed |
0.01 to 20 ㎜/s |
| Software |
Measurement NC program automatic creation, Auto-alignment(Includes probe
radius offset), Data editing, Auto-centering, Monitoring while measuring,
3D color graph, Roughness measurement, Auto inclination correction,
Measurement origin operation, Point array data output
|
|
| |
|
 |
|
