Item Unit BSM-380S BSM-400S BSM-500S
Holder Work diameter Max. mm フ38 フ40 フ50
Min. フ10 フ20 フ20
Work length Max. 330 330 350
Min. 220 220 220
Spindle Speed rpm 500 ~ 4,000 rpm
Tool Table Tool Table   2 Table
X / Z axis trave mm X逐 : 250 / Z逐 : 200
motor Spindle motor   2.2 / 3.7
Control unit   FANUC SYSTEM 18i-TA

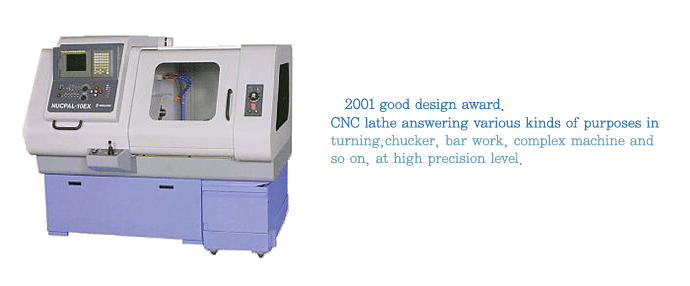

Item Description
Collet type 25.5mm(EDA-10)
Spindle speed 100▽5000rpm　
X axis travel 260mm
Z axis travel 250mm
Control 0.1mレm
Spindle motor FANUC　メ2
Control unit FANUC　FS21i-TA
Floor space 1,580 x 1,360mm

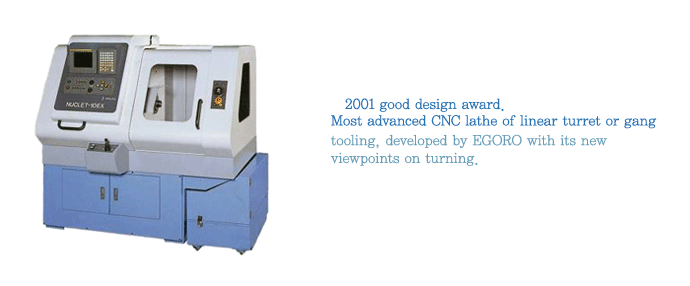

Item Description
Collet type 25.5mm(EDA-8)
Spindle speed 500▽4000rpm　
X axis travel 230mm
Z axis travel 200mm
Spindle motor 1.5KW INVERTER
Control unit FANUC　FS21i-TA
Floor space 1,000 x 1,100mm
